#TA58569 - TAMIYA LANCIA DELTA (XV-01)

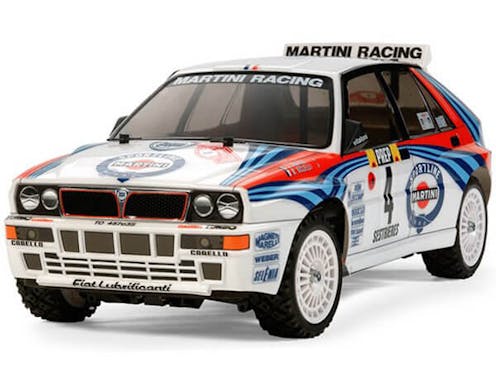

This is a 1/10 R/C model assembly kit of the Lancia Delta Integrale. The polycarbonate body recreates the look of the angular 4-door hatchback, complete with front/rear blister fenders and down to details such as the bulge on the front bonnet and the numerous air intakes in the front bumper. The kit also includes separate parts to depict the side mirrors and roof spoiler. Stickers recreate the markings, including the famous Martini Racing stripes. The model runs on the front motor, belt-driven 4WD XV-01 chassis, and comes complete with rally block tires to make it ready to drive on-road or on flat dirt.

XV-01 Chassis
The XV-01 chassis offers exciting R/C driving action on both on- and off-road surfaces. It features a front-motor, belt-driven 4WD layout with the gearboxes, drive belt, battery, and R/C unit areas protected by covers against dirt and debris. Holes in the bottom of the chassis further help remove any debris which manages to get onboard, ensuring unhindered off-road performance. Long steering linkage provides stable wheel alignment. In addition, detachable wheel well liners help prevent mud and gravel intrusion. Gear differential units enable customization with different viscosities of differential oils.

●Length: 407mm, Width: 186mm, Height: 155mm
●Wheelbase: 257mm
●Tire Width/Diameter: Front & Rear 27/69mm
●Monocoque Chassis Frame
●Belt-Driven 4WD
●F/R Gear Differential Units
●3-Piece Steering Tie-Rod
●4-Wheel Double Wishbone Suspension
●CVA Shock Units
●Gear Ratio＝8.04:1 (When used with kit-standard 68T spur and 22T pinion gears)
●Full Ball Bearings
●Type 540 Motor
●Requires 2-channel radio, servo, electronic speed controller, and Tamiya PS spray paint (sold separately)
