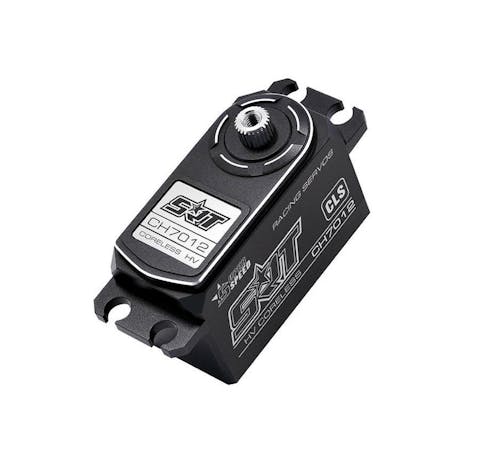

#SRT-CH7012 - SRT CH7012 HV CL Servo 9.0KG - 0.07 sec at 6v - Metal Case

KEY FEATURES

• Ideal for 1/10 on road scale applications,  as well as large scale airplanes and jets
• incredible efficiency and low power consumption
• Titanium & Alu gears for precision and durability
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• HD 4096 Resolution
• 2 μsec Dead Band
• Superior Holding Torque
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Alu
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.07 sec/60 degrees at no load
• operating speed (7.4v): 0.06 sec/60 degrees at no load
• operating speed (8.4v): 0.057 sec/60 degrees at no load
• stall torque (6.0v): 9.0kg.cm (124.9 oz/in)
• stall torque (7.4v): 11.0kg.cm (152.7 oz/in)
• stall torque (8.4v): 12.0kg.cm (166.6 oz/in)
• potentiometer drive: direct drive
• dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
• weight: 52.0g (1.83 oz)
• connector wire length: jr 180 mm
