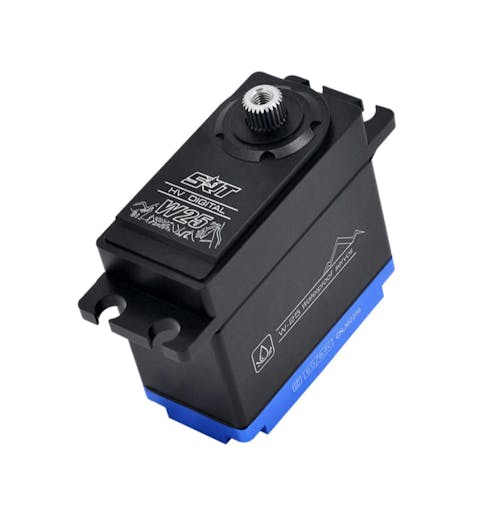

#SRT-W25 - SRT W25 SERVO 25kg - 0.14 at 7.4v

KEY FEATURES

• Ideal for 1/10 on road and 1/8 off road scale applications
• Intermediate aluminum case
• NMB dual main bearings
• Superior waterproof
• 25T output shaft
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: DC
• Gear Type: Metal
• Gear Material: Copper & Aluminum
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-7.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.16 sec/60 degrees at no load
• operating speed (7.4v): 0.14 sec/60 degrees at no load
• stall torque (6.0v): 23.0kg.cm (319.4 oz/in)
• stall torque (7.4v): 25.0kg.cm (347.2 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
• weight: 72.0g (2.54 oz)
• connector wire length: jr 360 mm
