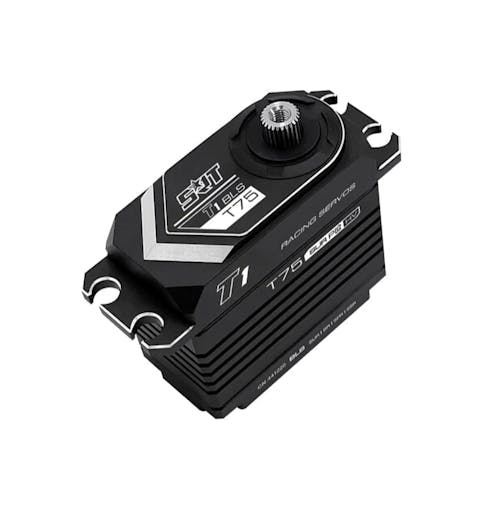

#SRT-T75 - SRT T75 SERVO 70KG - 0.12 at 8.4v

KEY FEATURES

• Ideal for 1/8 on road and 1/5 off road scale applications
• Superior Holding Torque
• Incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminium case for exceptional cooling
• Programmable High torque Brushless servo
• SSR mode compatible
• 25T output shaft
• 2 μsec Dead Band
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Steel
• control system: pulse width control
• working frequency: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.16 sec/60 degrees at no load
• operating speed (7.4v): 0.14 sec/60 degrees at no load
• operating speed (8.4v): 0.12 sec/60 degrees at no load
• stall torque (6.0v): 55.0kg.cm (763.8 oz/in)
• stall torque (7.4v): 60.0kg.cm (833.2 oz/in)
• stall torque (8.4v): 70.0kg.cm (972.1 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7 x 20.5 x 39.0 mm /1.60 x 0.81 x 1.54 in
• weight: 83.0g (2.93 oz)
• connector wire length: jr 300 mm
