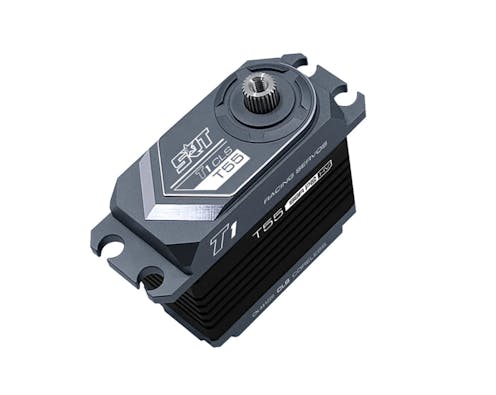

#SRT-T55 - SRT T55 55KG - 0.19 at 8.4v

KEY FEATURES

• Ideal for 1/8 on road scale applications
• Superior Holding Torque
• Incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• Programmable High torque Brushless servo
• SSR mode compatible
• 25T output shaft
• 2 μsec Dead Band
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Steel & Aluminium
• control system: pulse width control
• working frequency: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.22 sec/60 degrees at no load
• operating speed (7.4v): 0.20 sec/60 degrees at no load
• operating speed (8.4v): 0.19 sec/60 degrees at no load
• stall torque (6.0v): 43.0kg.cm (597.2 oz/in)
• stall torque (7.4v): 50.0kg.cm (694.4 oz/in)
• stall torque (8.4v): 55.0kg.cm (763.8 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7 x 20.5 x 39.0 mm /1.60 x 0.81 x 1.54 in
• weight: 81.0g (2.86 oz)
• connector wire length: jr 300 mm
