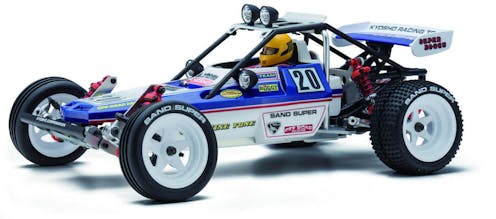

#K.30616 - Kyosho Turbo Scorpion 2WD 1:10 Kit *Legendary Series*

More performance and style with improvements to each key component,
this machine is more than just a reproduction!

As the 5th model to make its return as part of the vintage series, the ever-popular Scorpion released in 1982 was relaunched 2 years ago and has undergone a detailed overhaul to match modern performance with retro styling. The new Turbo Scorpion remains true to the essence of the unique Scorpion design throughout, but features Scorpion-style wheels in the larger 2.2 inch modern standard wheels for improved off-road performance. In addition, 12mm oil shocks based on the Optima deliver rock-solid running stability and excellent damping characteristics that work in combination with high-grip front and rear tires with a 20mm wider front tread and 10mm longer wheelbase than the original Scorpion to realize improved control and handling performance. With a thorough modernization, the new Turbo Scorpion is ready and willing to accept modern-day power sources and compete on modern race circuits. The standard Turbo Scorpion is a fully optioned chassis configuration and is ready to take the punishment that goes with hard driving.

• Turbo Scorpion updated to meet the demands of the modern off-road racing scene.
• Kit includes pre-assembled gearbox and oil shocks.
• Features same racy-style mini bumper as the original.
• Rear section reinforced with Rear Sus Post L, strengthened by added flange.
• Features accurate recreation of the original loop-mount light buckets. Optional LED lights can be simply bolted on.
• Screwed surfaces are countersunk for flat finish.
• Decals included in kit are diecut. Stretch for easy application and beautiful body finish.

Kit Contents

• Pre-assembled kit (gear box is pre-assembled)
• Polycarbonate clear body
• Decals
• Chassis parts
• L type hexagonal wrench
• Cross wrench
• Shock wrench
• Shock oil
• Grease

Required for operation

• 2ch 1 servo R/C system for cars
• 540 class motor
• ESC compatible with motor used
• Battery for chassis compatible with ESC used
• Battery charger
• Paint for polycarbonate body
• Batteries for transmitter
• Tools (1.5, 2, 2.5mm hexagonal wrench driver)

Technical data

• Length : 408mm
• Width : 256mm
• Height : 145mm
• Ground Clearance : 28mm
• Wheelbase : 273mm
• Tread (F/R) : 218mm/215mm
• Tire(F/R) : Φ82×27mm / Φ86×42mm
• Gear Ratio : 6.9 : 1 / 8.3 : 1 (select from 2-type)
• Weight : 1,500g (approx.)
• Motor : 540-type (sold separately)
