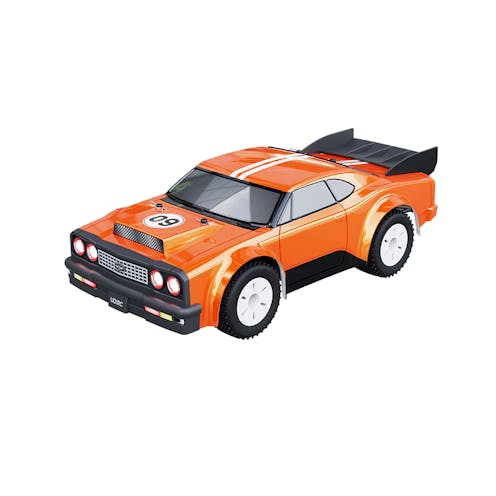

#UD1609A - UDIRC DRAG RACER - ORANGE - BRUSHED

Introducing from UDI 1:16 Drag Drag Racer - Full Scale High Performance 4WD Racing Cars.

Available in Black and Orange Brushed and PRO Brushless.

Oil Filled shocks, Metal Differentials, Racing Tyres!

Oil-filled Metal Shocks
Oil-filled GTR shocks attach to the progressive rocker arms for silky-smooth damping. Threaded aluminium bodies feature collars for easy spring pre-load adjustment. Silicone bladders and X-ring seals prevent leaks for long-lasting performance.

Electronic Stability Program
When the car slides or slips out of control, it can quickly and effectively be corrected in attitude and direction. The function and sensitivity of the gyroscope sensor can be adjusted and turned off by the ESP knob on the transmitter.

High Speed Bearings (Throughout)
The whole vehicle uses ball bearings to improve the mechanical transmission efficiency. With ball bearings, the friction is reduced, the transmission efficiency and power is improved, and mechanical damage is reduced at the same time.

Metal Differentials
The UDIPOWER 4-gear differentials feature massively larger gears that use over twice as much steel for extreme durability. The differentials are sealed and filled with heavyweight oil, giving them the performance feel of limited-slip differentials. Steel drive cups fit over huge 9mm hardened steel output shafts which ride on oversized sealed bearings.

Rubber Tyres
Professional Racing Off-road Tyres

2 in 1 Receiver ESC box
- 4CH 2.4G waterproof, dust-proof design
- Electronic Stability Program(ESP)
- Low Voltage Cut Off and Thermal Overload Protection
- Brake, BEC, LVC sensitivity, reverse speed settings

Strong Magnetic Motor
7.4V, 380SM high performance power system

Power Supply
7.4V, 1200mAh rechargeable LiPo battery

Cool Modelling
Control headlight with 3 lights modes.

Metal CVD Driveshafts

Bodyshell Overview
The bodyshell is made with tough PVC materials and printed in a colourful way!

Metal Bulkhead Hangers
The reinforcement of the metal wishbone hangers enables the car to withstand greater impact.

Model Level Remote Control Transmitter
- 2.4GHz full proportion radio remote control system
- Steering range percentage adjustment
- Electronic stability system (ESP)
- Steering trim
- 4 channel transmitter
- Failsafe protection function
- Speed switch

Technical Specifications

Assembly time: Install batteries
High Speed Bearings: The whole car
Battery: Included
Remote Control Distance: about 60m
Playing Time: about 15 minutes
Battery capacity: 7.4V, 1200mAh
Charger: Included
Completion Level: Ready-to-run
Differential: Two oil-filled gears
Drivetrain: Four Wheel Drive
Drive Type: Forward/Brake/Reverse
Final drive ratio: 6.05:1
Front wheel track: 139.6mm
Power Type: Electric
Tooth pitch: 0.5 / 0.7 / 1.0MOD
Bauchfreiheit: 20mm
Internal gear ratio: 2.8:1.1
Motor type: Strong magnetic motor/brushless motor
Gear: 16T
Product Length: 356mm
Product Width: 160mm
Product Height: 102mm
Product Weight: 617g
Transmitter: Include
Rear wheel track: 130mm
Receiver: Included
Scale: 1/16
Servo: Included
Speed controller: Included
Spur gear: 38T
Suspension: Independent
Truck type: off-road racing
Wheel base: 169.6mm
