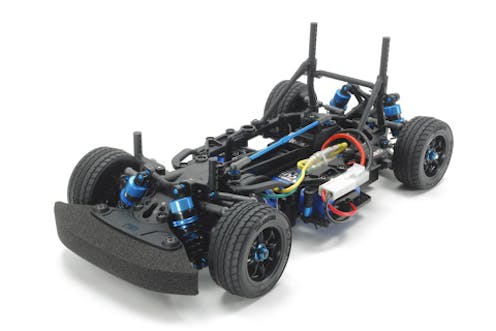

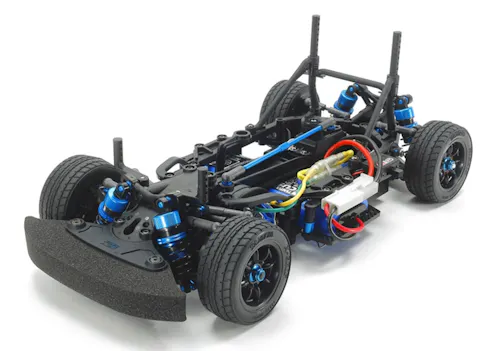

#TA47520 - TAMIYA M-07R CHASSIS KIT

This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fibre battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer. The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminium cup joints, hard-coated aluminium pinion gear and more.

Featured Components

• Carbon fibre battery holder (dedicated component)
• Rear stabilizer
• TRF special dampers (hard black coating)
• Double-cardan drive shafts (33mm)
• High-traction lower deck
• Reinforced C parts (uprights)
• Reinforced D parts (suspension arms)
• 3x106mm aluminium turnbuckle shafts
• Aluminium joint cups
• Clamp-type aluminium wheel hubs (5mm)
• 2.6mm diameter titanium-coated shafts
• 46mm titanium-coated shafts
• 06 module aluminium pinion gear (20T)
• Full ball bearings
• Hi-torque servo saver (black)

Specifications

• Length: 332mm (including bumper)
• Width: 164mm
• Wheelbase: 225mm or 239mm (Selectable)
• Monocoque Frame
• Front-Midship Motor, Front-Wheel Drive
• Oil-Filled Gear Differential
• 3-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• TRF Special Dampers
• Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)
• Requires an Electronic Speed Controller (sold separately)

Separately Required Items

• Compatible body
• 2-Channel R/C System w/ESC
• R6/AA/UM3 batteries for transmitter
• Type 540 Motor
• Battery Pack & Charger
