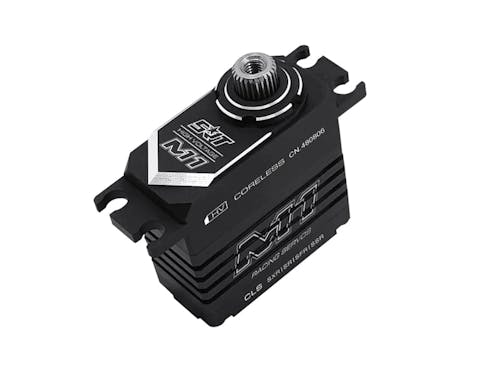

#SRT-M11 - SRT M11 1/12TH PAN CAR SERVO

KEY FEATURES

• Special 1/12 pan car servo
• Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
• Incredible efficiency and low power consumption
• 2 μsec Dead Band
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Steel
• control system: pulse width control
• working frequence: 1520μs / 333hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.07 sec/60 degrees at no load
• operating speed (7.4v): 0.065 sec/60 degrees at no load
• operating speed (8.4v): 0.055 sec/60 degrees at no load
• stall torque (6.0v): 7.0kg.cm (97.2 oz/in)
• stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
• stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
• potentiometer drive: direct drive
• dimensions: 28.5x13.4x29.0 mm /1.12x0.53x1.14 in
• weight: 28.0g (1.0 oz)
• connector wire length: jr 170 mm
