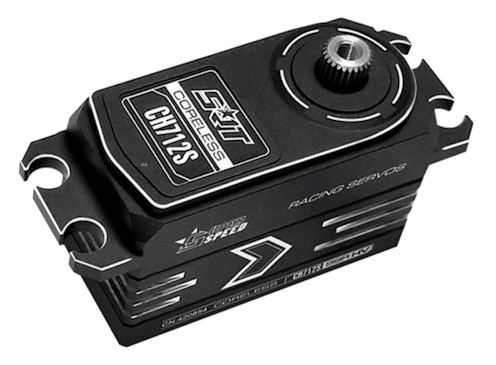

#SRT-CH712S - SRT CH712S CL Servo 12.6KG - 0.049 at 8.4v - Metal Case

New from SRT is their CH712S HV coreless low profile servo. Featuring super fast 0.049 seconds travel time and with 12.6kg of torque at 8.4V, the numbers are impressive. The MCU has been upgraded thanks to a new PCB with the SSR mode giving this new servo excellent performance and response times. The dual ball raced servo is housed in a black anodised casing and features all metal gears for increased durability.

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Alu
• Control system: pulse width control
• Working frequency: 1520μs / 330hz
• Operating voltage: dc6.0-8.4v
• Operating temperature range: -10 to + 60 degree
• Operating speed (6.0v): 0.065 sec/60 degrees at no load
• operating speed (7.4v): 0.052 sec/60 degrees at no load
• operating speed (8.4v): 0.049 sec/60 degrees at no load
• Stall torque (6.0v): 9.8kg.cm (136.1 oz/in)
• Stall torque (7.4v): 11.8kg.cm (163.9 oz/in)
• Stall torque (8.4v): 12.6kg.cm (175.0 oz/in)
