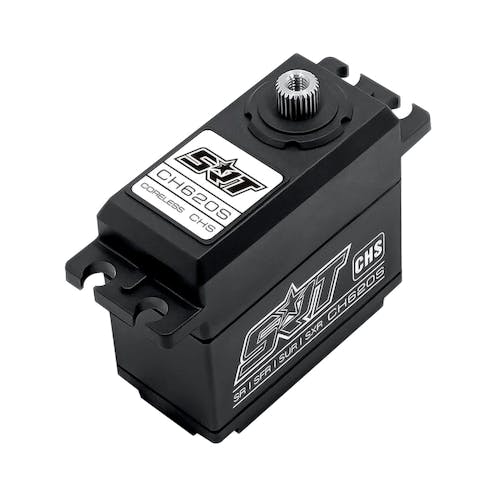

#SRT-CH620S - SRT CH620S - Digital Servo - Coreless - HV - 0.10sek / 18.0kg
Fast Delivery
We deliver world wide. Depending on your location, at checkout you may be offered with a choice of delivery methods.
For UK Mainland England, Wales, Scotland (Excluding Highlands) & IOW, DPD Delivery is Free on orders over £100*
Description
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
operating speed (8.4v): 0.09 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive
dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm
Specification
|
Brand > Models
|
SRT
|
|---|---|
|
Is Radio/Servo
|
Yes
|
|
Radio / Servo Type
|
SERVOS, SRT SERVOS,
|
