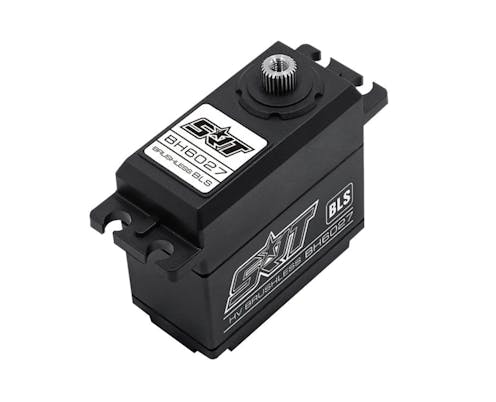

#SRT-BH6027 - SRT BH6027 SERVO 20KG 0.8 @7.4 ALUM CASE

KEY FEATURES

• Ideal for 1/10 on road applications
• incredible efficiency and low power consumption
• Aluminum case for good heat dissipation
• NMB dual main bearings
• 25T output shaft
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Titanium & Alu
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.11 sec/60 degrees at no load
• operating speed (7.4v): 0.08 sec/60 degrees at no load
• operating speed (8.4v): 0.075 sec/60 degrees at no load
• stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
• stall torque (7.4v): 25.0kg.cm (347.2 oz/in)
• stall torque (8.4v): 27.0kg.cm (375.0 oz/in)
• potentiometer drive: direct drive
• dimensions: 41.3x20.5x38.3 mm /1.63x0.80x1.51 in
• weight: 69.0g (2.43 oz)
• connector wire length: jr 300 mm
