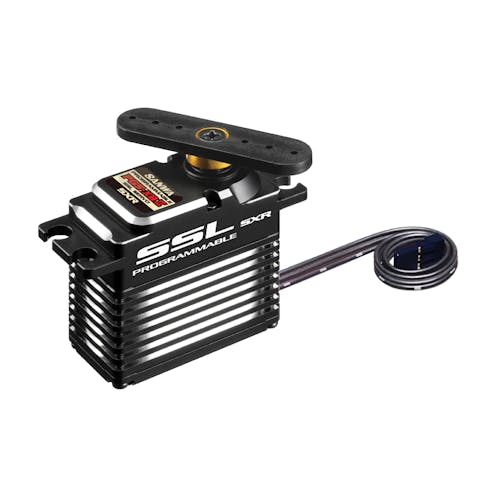

#SA107A54563A - SANWA PGS-XB2 SERVO

FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE

- SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
- PGS SETTING GEAR-COMPATIBLE
- SUPER RESPONSE (SSR) MODE-COMPATIBLE
- HIGH RESPONSE (SHR) MODE-COMPATIBLE
- Li-Po 2 CELL-COMPATIBLE
- HIGH TORQUE TYPE
- BRUSH LESS MOTOR
- FULL ALUMINUM CASE
- FULL METAL GEAR (Strengthening Gears)
- AL HEAT SINK
- Black Harness

Programmable Servo to be compatible with SSL & Telemetry at Launch  - Setting Adjustment by wireless from Radio  - Setting Adjustment to connect Servo with Setting Gear - Regarding Temperature, Current, Voltage and Volume Position on Servo inside,  Telemetry-transmission can be passed to Radio. # Initial Setting on Setting Gear is necessary.

- Setting Items - SSL-CH (SSL Channel Setting) - STRETC (Stretcher Adjustment) - BOOST (BOOST Adjustment) - D-Band (Dead Band Adjustment) - MV-MID (Middle Torque Adjustment)  - MV-END (Later Torque Adjustment) - BREAK (Break Adjustment)  ?MV-HOLD (Power Adjustment at whole area) ?MV-FRQ (Feeling Adjustment at whole area)  ?MAX-PW (MAX Duty Adjustment)  ? Setting Gear is necessary for ?setting.

Speed  0.11 sec/60 (7.4V) 0.14 sec/60 (6.0V)

Torque  21.1 kg/cm (7.0V) 17.9 kg/cm (6.0V)

Dimensions  40.5x20.5x38.7 mm

Weight  72 g
