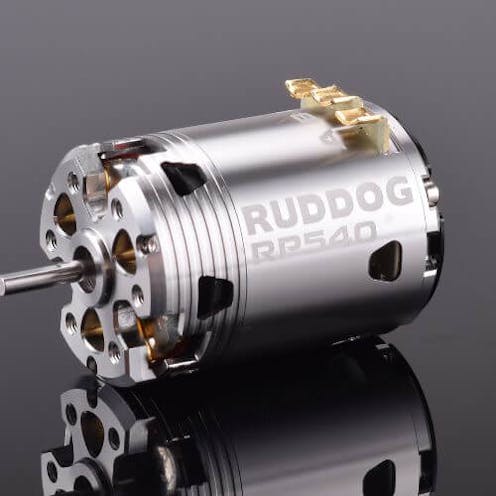

#RP-0014 - RUDDOG RP540 17.5T 540 Sensored Brushless Motor
Fast Delivery
We deliver world wide. Depending on your location, at checkout you may be offered with a choice of delivery methods.
For UK Mainland England, Wales, Scotland (Excluding Highlands) & IOW, DPD Delivery is Free on orders over £100*
Description
The RUDDOG RP540 sensored competition brushless motor offers the latest technologies in terms development and production of competition motors. Weighing in at a lightweight 170g the motor is made using highest grade materials including Japan-made steel stator plates and a 99.9% high-temperature pure copper wire. Large venting openings improve cooling and provide constant performance over the entire runtime even under the hottest of conditions. On top of this the silver color can give you the advantage not only on, but also off the track.
Specifications:
Weight: 165-175g depends on turn rating
Voltage: 2S/7.4V
Size: 540 = 36x51.75mm
Shaft diameter: 3.175mm
KV rating: 2200 RPM/V
Power: 130 Watts
Internal Resistance: 0,0514 Ohm
Max Current: 34A
Rotor: ￠12.5*￠7.2
Timing: Adjustable from 20 to 60°
Sensor: Standard Sensor Port / exchangeable
Specification
|
Brand > Models
|
RUDDOG
|
|---|---|
|
Is Electrics
|
Yes
|
|
Electrics Type
|
Electrics, MOTORS, RUDDOG MOTORS,
|
