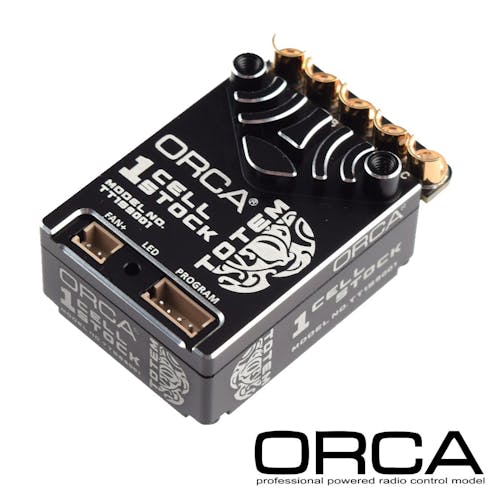

#OR-ES23TOTEM1S - ORCA Totem 1S - 1/12th 1S pro electronic speed controller
Fast Delivery
We deliver world wide. Depending on your location, at checkout you may be offered with a choice of delivery methods.
For UK Mainland England, Wales, Scotland (Excluding Highlands) & IOW, DPD Delivery is Free on orders over £100*
Description
The ORCA Totem 1S 1/12 brushless esc is ORCA's latest stock spec speed Controller developed for 1/12th LMP12 and GT12 pan cars. It features a continuos current rate of 100A, which is enough for up to 10.5T motors while using the included fan mounted on top of the esc. The 23.5g light Totem 1S esc comes with reverse polarity protection and integrated capacitors for a even smaller footprint that is just 25.8mm wide. Centrally located cable outputs at the rear of the ESC.
Specifications:
Dimensions: 25.8mm x 33.6mm x 17.6mm
Weight: 23.5g
Voltage Input: 3-4.35V
Peak Current: 380A
Continous Current: 100A
Motor Limit: Over 10.5T
Motor Type: Sensored 540 sized brushless motors
BEC: 3A | 6V-7V
Multi Protection System: Yes
