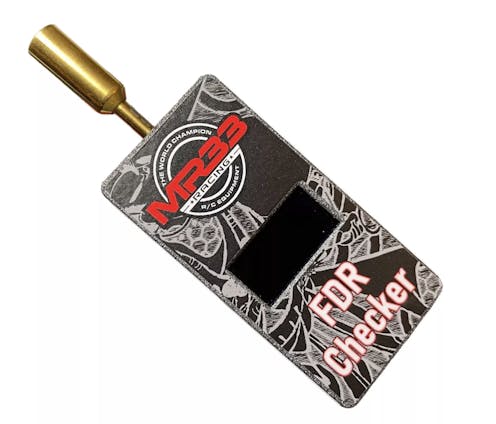

#MR33-FDR - MR33 Drivetrain Checker (DTC) - gear ratio and engine speed measuring device

WARNING THESE UNITS DO NOT HAVE THE MR33 GRAPHICS

With the MR33 Drivetrain Checker, it is finally possible to measure and check the gear ratio and motor speed of RC model cars powered by 2-pole brushless motors.

Simply place the motor sensor on the motor, put the 7mm wrench on the wheel nut of a driven wheel, and step on the gas.
Now just read the displayed value on the display, and the job is done in 5 seconds.
Simple and uncomplicated, for example, as part of the technical inspection before the run.

"Every club and every 1:10 electric racing series has been waiting for this device!"

If only the engine sensor is applied and the throttle is opened, the (maximum) engine speed can be measured - perfect for testing speed limits of modern speed controllers.

"Developed and tested as part of the Euro Touring Series (ETS)."

Technical data

• compact and ergonomic housing with integrated stand
• Dimensions: approx. 115mm x 42mm x 26m
• Weight approx. 110g
• 1.3 inch (3,2cm) OLED display with 128*64 pixel resolution
• Very good readable even in sunlight
• Motor sensor with approx. 35cm long cable

Scope of delivery:

• Measuring device
• Motor sensor
• USB cable 1m
• MR33 storage bag
