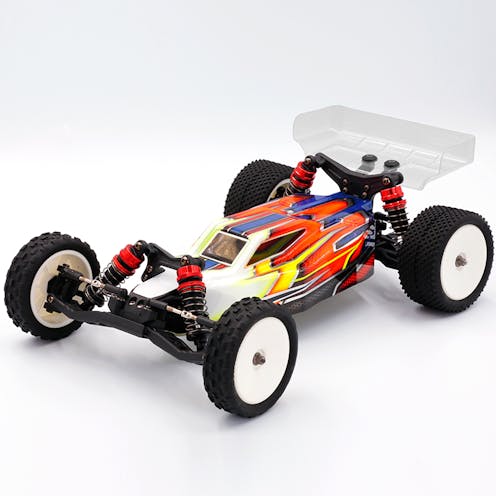

#LC-BHC-1LBU - LC Racing - BHC-1 - 1/14th scale brushed 2wd ready to run buggy (Blue version)

LC Racing BHC-1, is an all new 1/14th scale, ready to run (RTR) buggy with a 2WD mid motor drivetrain. Reliable performance for great fun and excitement

Stock motor plate can fit 2440 (4600kv) brushless motor, can use current EMB brushless esc, and if you want to use the emb brushless motor, you will need a new motor plate.

Shocks can be replaced with existing EMB-1 shocks (requires new set of shock springs)

Available in a choice of two body colour schemes black or blue (and unpainted version as an option part), rear wing is unpainted



Product Features:

1/14 2wd racing buggy designed for racing from the ground up with race spec geometry

Mid Motor chassis layout

2.0mm T6 6061 Aluminum Chassis

Threaded oil filled shocks (can use EMB aluminium shocks for option parts)

Oil filled rear differential (same diff gear as EMB)

Fully Assembled Ready to Run  "Turbo Hobby" waterproof 2 in 1 ESC and receiver

LC Racing 390 size 23 turn brushed motor

"Jetgo" Front and rear tire set for Carpet/Astro Turf mounted on white dished wheels

"Batan" D116 digital direct drive metal geared steering servo

"Gens Ace" 1300mah 2s 30C lipo battery

USB 0.5A charger

Rear CVA driveshafts

Full ball bearings throughout Full range of optional tuning parts available soon



Specifications：

Scale：1/14

DriveTrain: 2wd

Gear pitch: 0.5 MOD

Motor size: 380 (brushed)

Tire Tread: Front - Staggered Ribs     Rear -  Mini Pin

Wheelbase:   210mm (8.26in)

Length          305mm (12in)

Width           195mm (7.677in)

Height           110mm (4.33in)

Ride Height   20 mm (0.8in)



INCLUDED IN THE KIT

1 x 1:14th BHC-1 ready to run buggy 1 x Instruction Manual



REQUIRED TO COMPLETE

4 x AAA batteries for radio control
