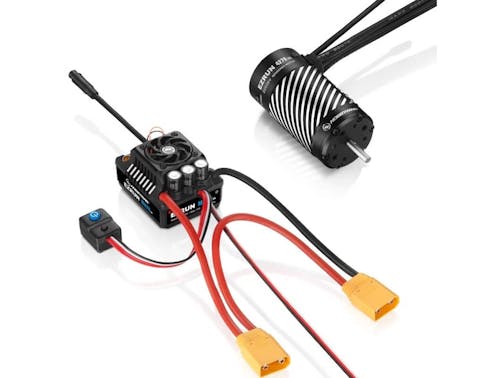

#HW38010404 - HOBBYWING COMBO EZRUN MAX8 G2 ESC 4268SD-2500KV G2 MOTOR

HOBBYWING COMBO EZRUN MAX8 G2 ESC 4268SD-2500KV G2 MOTOR

The EZRUN MAX8 G2 is the most sought-after ESC on the market. It’s dynamic and dominant specifications meets the needs of power-hungry users. It has a strong output power with excellent linearity at low speed and is operating on full-sensored mode.

SMART technology, developed by Hobbywing, creates higher drive efficiency and a lower operating temperature. The temperature is now 25°C cooler compared to the previous generation of the MAX8.This increases the overall reliability of the ESC.

The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including muddy, sandy, icy, snowy and water without damaging the power unit.

HOBBYWING EZRUN MAX8 G2 FEATURES

• Innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates.
• Applicable to All Weather Conditions
• Built-in ultra-powerful switch mode BEC with a continuous current of 6A, an instant 15A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
• Equipped with the most advanced and safe electronic switches
• Supports 32 degree turbo timing setting, when used with a matching motor such as EZRUN 4278SD
• Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection
• Supports LED program card, LCD G2 program box, OTA programmer (Note: optional)
• Real-time data logging to view running data on the HW LINK app using the OTA Bluetooth module
• ESC firmware upgrade is supported, you can enjoy the latest functions

ESC SPEC CHECK

• Scale: 1/8th
• Brushed/Brushless: BL
• Sensored/Sensorless: SD/SL Waterproof: Yes
• Cont./Peak Current: 160A/1050A
• Input: 3-6S LiPo
• Motor Limit: 4S Lipo: ≤3000KV; 6S Lipo: ≤2400KV (4278 size motor)
• BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
• Input Connectors: XT90
• Output Connecotors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
• Fan: Frameless
• Fan Voltage Range: 6V / 7.4V / 8.4V from the built-in BEC
• OTA Module: Supported
• Program Port: FAN/Program Port
• Size: 60x48x40.5
• Weight: 192g

The EZRUN series of motors are known to be dynamic and dominant. They are built differently to meet the needs of various demands on the market. It has a strong output power with an excellent linearity at low speed and is operating on full-sensored mode.

The motor achieves perfect compatibility when used together with the EZRUN MAX8 G2 ESC. It provides ultra-large torque, precise handling performance, and brings a smooth and comfortable control experience to the users.

The IP67 waterproof system equipped with a new type of sensored cable guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

HOBBYWING EZRUN 4268 FEATURES

• High Torque
• High Efficiency
• Solid Construction
• Quality Materials & Excellent Design

SPEC CHECK

• Scale: 1/8th, 1/10th
• Brushed/Brushless: BL
• Sensored/Sensorless: SD
• Pole Count: 4
• KV Rating: 2500
• LiPo Cells: 2-4S
• No-load Current(A): 4.8
• O.D.(mm): 42.0
• Length (mm): 68.0
• Shaft Diameter (mm): 5.0
• Weight (g): 355
