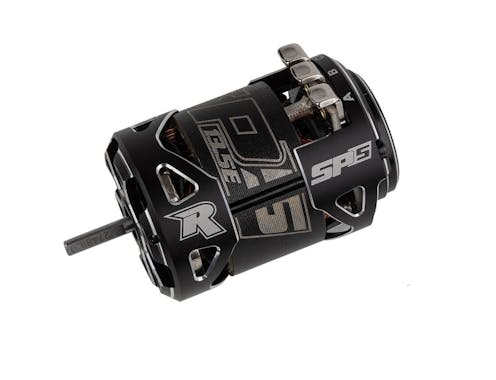

#AS27489 - REEDY SONIC 540-SP5 13.5T EURO SPEC BRUSHLESS COMP. MOTOR
Fast Delivery
We deliver world wide. Depending on your location, at checkout you may be offered with a choice of delivery methods.
For UK Mainland England, Wales, Scotland (Excluding Highlands) & IOW, DPD Delivery is Free on orders over £100*
Description
The heat-transfer epoxy coating has been eliminated in the Euro-spec version.
Reedy's all-new Sonic SP5 Euro-spec stock motors are now available! Due to slight difference between European and US rules, a small change to the factory build sheet is required. Only the heat-transfer epoxy coating has been eliminated in the Euro-spec version. Otherwise, both versions are identical.
The incredible performance of the SP5 starts at the heart of the motor--the stator. Designed in-house, the stator's profile is intended to achieve maximum torque and power output without sacrificing RPM. High-quality copper magnet wire, sized to the maximum that the rules allow and wound with care to keep resistance near the legal minimum, is a key factor in achieving maximum performance. An oversized collector ring not only dissipates heat, but in conjunction with thick solder tabs, reduces resistance and power loss.
A balanced rotor features a high-strength magnet that takes full advantage of dimensional rules to produce fade-free power with maximum effectiveness. The rotor is supported by precision stainless steel ball bearings to accommodate high RPM loads with exceptional efficiency and reliability. Like all Reedy Sonic motors, a high-quality sensor board rounds out the motor's interior.
Externally, the SP5 utilizes a lightweight two-piece CNC-machined aluminium housing with an aluminum endcap and timing adjustability to accommodate fine-tuning for specific applications. This lightweight package is a welcome way to improve vehicle handling while improving chassis tuning flexibility.
FEATURES
- CNC-machined housing with optimized air cooling
- Custom high-power stator design
- Low-resistance solder tabs and collector ring
- Balanced rotor with high-strength magnet
- Dual precision ball bearings
- Aluminum end cap with adjustable timing
- Completely rebuildable
- Competition proven
- Built to BRCA, EFRA, and IFMAR specifications
SPECIFICATIONS
Cells: 1-2S LiPo Diameter (mm): 35.9 Length (mm): 52.5 Shaft Dia. (mm): 3.15 Weight (g): 147-151
Specification
|
Brand > Models
|
REEDY
|
|---|---|
|
Is Electrics
|
Yes
|
|
Electrics Type
|
Electrics, MOTORS, REEDY MOTORS,
|
